Product Detail

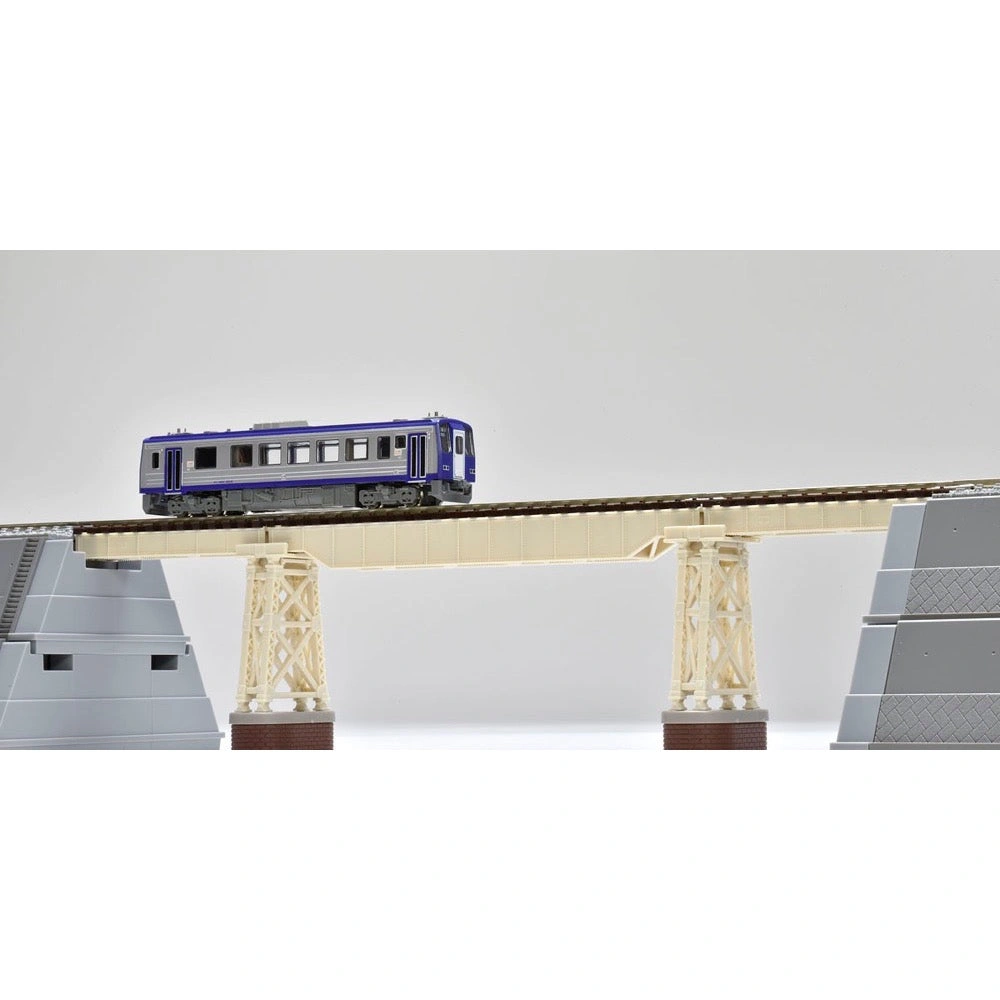

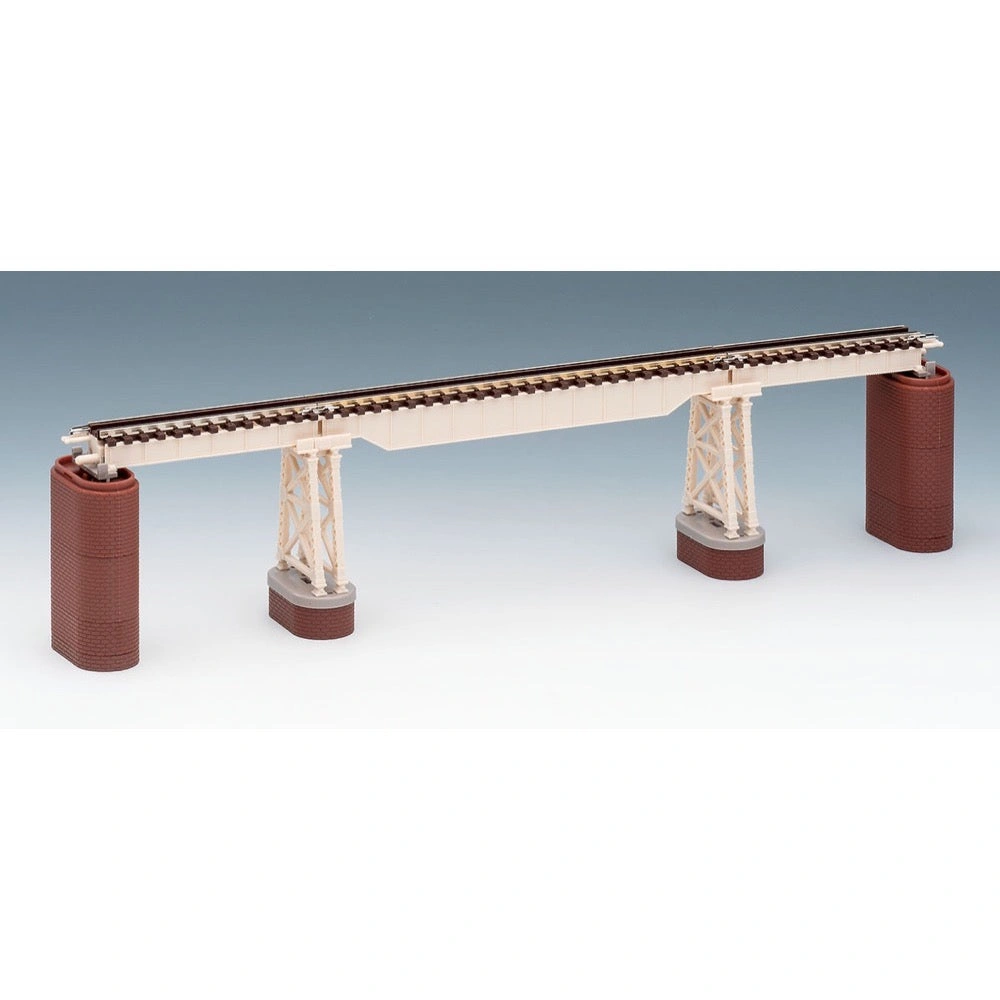

A trestle bridge is a bridge whose girders are supported by tower-shaped piers made of wood, steel, concrete, etc.

Features

• The rails are easily and securely connected.
• The color of the bridge body and trestle piers is ivory.
• The sleepers are separate parts molded in brown.
• The girder part is 280mm long, the same length as the straight rail S280, with two 70mm pieces and one 140mm piece.
• The height is the same as the PC horizontal pier P10 and the double-stacked embankment for wide rail
• Two sets of B11 and two B2 brick piers are included.
  　*B11 is the standard height of Tomix viaducts.
  　*B2 is the brick pier section 10mm high
• The trestle pier is assembled by the user
• The waiting area is included as a runner part
• Parts that mimic fink reinforcement can be attached to the 70mm girder part
• A passage can be installed
• By processing the passage, it is possible to install <3077> Single-line overhead line pole, steel frame type (set of 24)
• The handrails in the passage can be replaced with the S70 handrails included with the separately sold <3054> Wide rail wall S70, signal type (6 types x 8 sheets) or the handrails of the <3080> Wide rail wall S140 (3 types x 8 sheets)
• The brick piers can be replaced with the separately sold <3227> Double-track concrete pier set

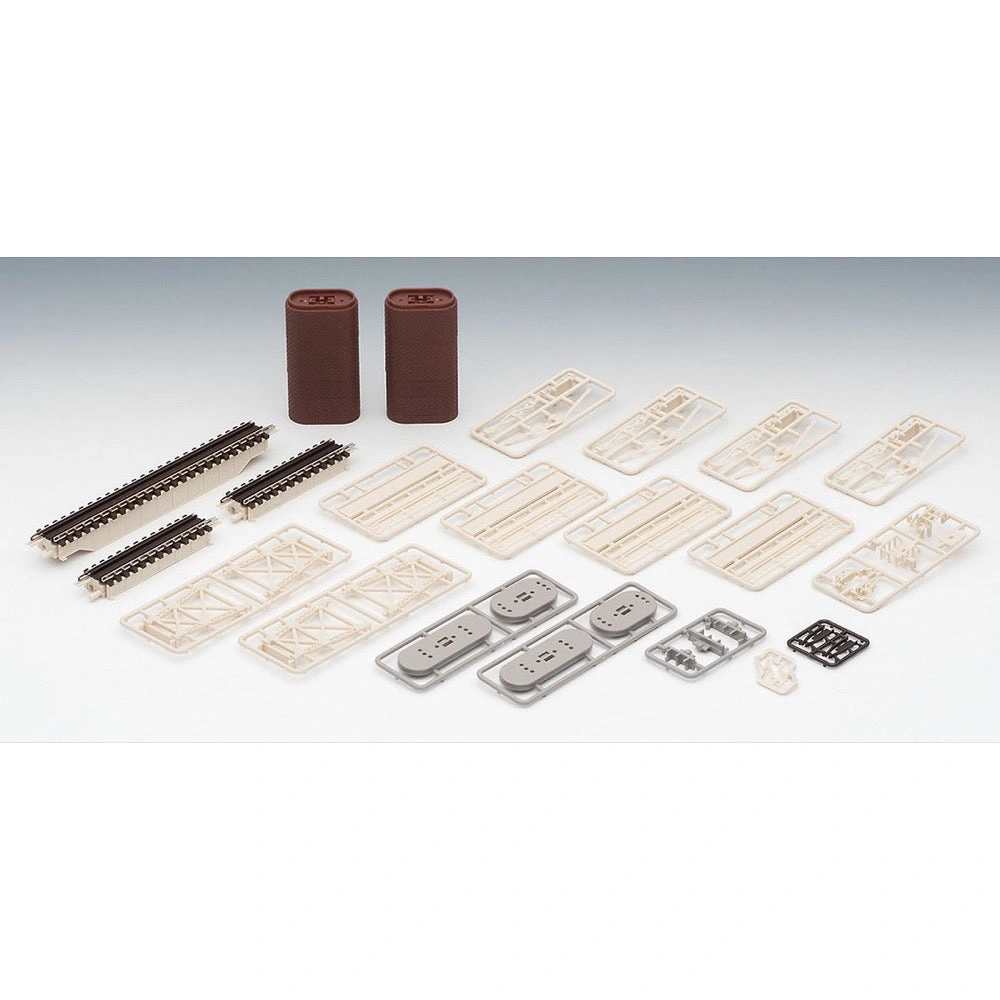

Details

• Bridge girder S70 (ivory) x 2
• Bridge girder S140 (ivory) x 1
• Brick pier (B11) x 2 sets
• Brick pier (B2) x 2

Accessories

• Runner parts: Beams for girder bridge S140
• Runner parts: Handrails for girder bridges, etc.
• Runner parts: Waiting areas for girder bridges, etc.
• Runner parts: Couplings for girder bridges
• Runner parts: Bridge support truss
• Runner parts: Connecting truss, etc.
• Runner parts: Upper part of pier
• Runner parts: Guard rails
